Patio Drainage Channel Systems Explained

A patio can look perfectly laid on day one and still become a problem after the first heavy spell of rain. Standing water, dark staining, slippery surfaces and runoff towards the house usually point to one issue - poor drainage. That is where patio drainage channel systems make a real difference. When they are chosen and positioned properly, they help protect the paving, improve safety and keep water moving where it should.

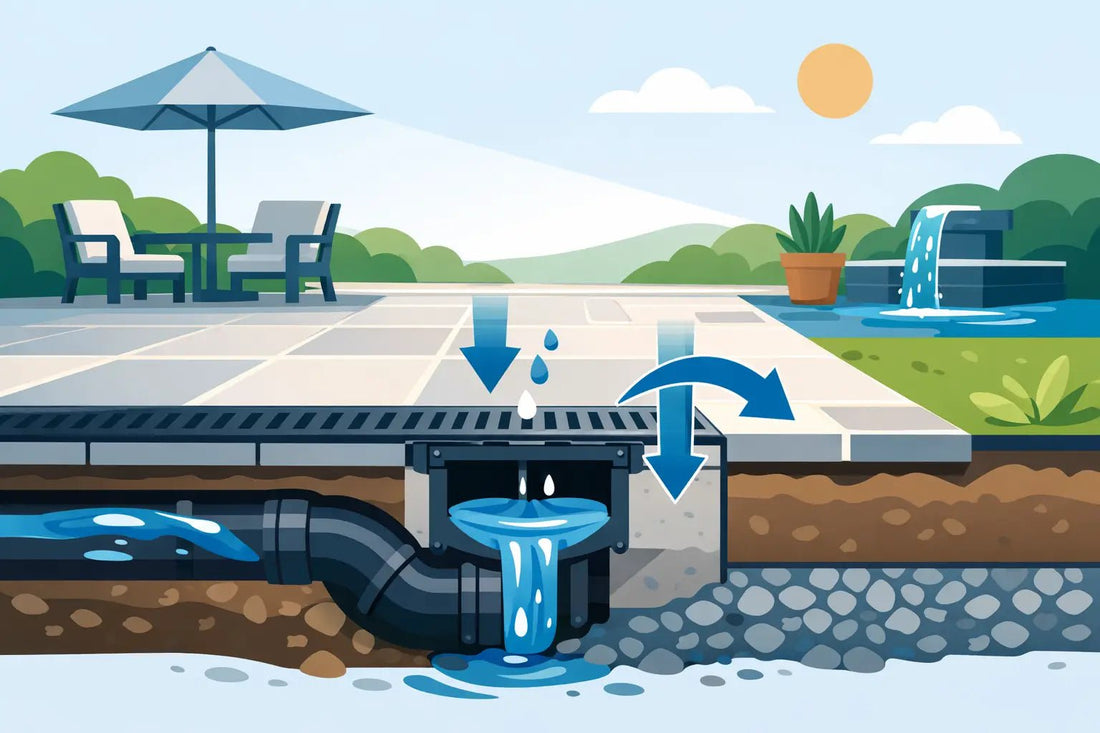

What patio drainage channel systems actually do

A patio drainage channel system is designed to collect surface water and direct it away from the paved area into a suitable outlet, such as a soakaway or existing drainage point. On most projects, the channel sits at the lowest point of the patio or across a threshold where water needs to be intercepted before it reaches a wall, bifold doors or another hard surface.

For homeowners, the main benefit is simple - less pooling and less mess. For installers and trade buyers, it is also about preserving the performance of the full build-up. Good drainage helps reduce joint washout, surface grime and the gradual problems that come from water sitting where it should not.

Channel drains are especially useful with porcelain paving, where the surface is low porosity and rainwater will run off rather than soak through. That does not make porcelain a problem product. It just means the fall of the patio and the drainage details need to be planned properly from the start.

Where channel drains are most useful

Not every patio needs a drainage channel, but many do. If the paved area sits close to the house, if there is limited room to create a long natural fall, or if you are dealing with a larger terrace, a channel system often gives a cleaner and more reliable solution than hoping water will find its own route away.

They are commonly used in front of patio doors, at the edge of retaining walls, between paving and lawns, and across transition points where one level meets another. They are also worth considering where the surrounding ground is heavy clay. In those gardens, rainfall drains slowly, so moving water away from the patio surface quickly becomes even more important.

The key point is that a drainage channel is not there to compensate for a badly designed patio. It works best as part of the drainage plan, not as an afterthought added once puddles appear.

Choosing patio drainage channel systems for your project

The right product depends on the layout, expected water volume and the finish you want. Domestic patios usually do not need the same loading performance as a driveway, but the system still needs to be durable, easy to fit and suitable for outdoor use year after year.

In most garden settings, you will be choosing between polymer concrete or plastic channel bodies with galvanised steel, composite or other hard-wearing grates. Polymer concrete often feels more premium and solid underfoot, while lighter plastic systems can be easier to handle and quicker to cut on site. Neither is automatically better in every case. Budget, expected foot traffic and the rest of the specification all matter.

Grate style is not just about appearance either. A slim linear grate can give a neater finish alongside contemporary porcelain slabs, while a more traditional pattern may suit natural stone better. What matters most is that the grate can cope with the intended use and allows water to enter efficiently without becoming a maintenance nuisance.

If you are matching drainage to premium paving, it is worth treating the channel as part of the visual finish rather than a purely functional add-on. A well-chosen system looks intentional and avoids that awkward patchwork effect where a patio looks smart but the drainage detail feels secondary.

Falls, levels and why layout matters

Even the best channel system will struggle if the patio has not been laid to the correct fall. Surface water needs encouragement. On most patios, that means creating a gradual fall away from the property or towards the drainage point. Too little fall and water lingers. Too much and the paving can feel uncomfortable under furniture or obvious underfoot.

The exact fall needed depends on the paving type and site conditions, but the principle stays the same - water should move steadily, not race across the surface and not sit in shallow dips. Before the paving is laid, levels should be planned with the finished threshold, sub-base depth and drainage outlet in mind.

This is where many problems begin. A patio might be set at the right finished height against the house, but with no realistic route for rainwater once it reaches the lowest edge. That often leads to retrofitted fixes, and retrofitted drainage rarely looks or performs as well as drainage designed into the original build.

Positioning the channel correctly

A drainage channel should normally sit at the point where water naturally collects or where you need to intercept it. In front of external doors, that usually means a straight run across the opening. Along the edge of a patio, it may follow the perimeter before connecting to a discharge point.

It also needs enough support on both sides. The channel body should be properly bedded and aligned so the grate finishes neatly with the paving. If it sits too low, it can create a visible dip. If it sits too high, it becomes a trip point and can interfere with run-off.

Drainage outlets and what happens to the water

Collecting water is only half the job. Patio drainage channel systems need somewhere to discharge. In some gardens, that will be an existing drainage connection. In others, a soakaway is the practical choice, provided the ground conditions allow it.

This part needs care, because simply redirecting water to the nearest corner of the garden can create a new problem. Saturated borders, soggy lawns and washout at boundaries are common signs that water has been moved, but not properly dealt with.

For domestic projects, Building Regulations and site-specific rules can affect what is acceptable, especially if water might otherwise be directed towards the public sewer. If there is any uncertainty, it is sensible to check the drainage plan before materials are ordered and levels are fixed.

Installation details that affect long-term performance

A good-looking grate on the surface tells you very little about how well a channel drain has been installed underneath. Long-term reliability comes from the surrounding groundwork. The channel needs a stable base, secure side support and clean alignment through the run so water does not catch in low spots.

Connections between sections should be fitted correctly, and end caps, outlets and corners need to suit the layout rather than being improvised on site. If the patio is being laid in porcelain or natural stone, careful cutting around the channel can make the difference between a sharp professional finish and a job that always looks slightly off.

Maintenance matters too. Most channel systems are straightforward to keep clear, but only if access has been considered. Leaves, silt and general garden debris will build up over time, especially under trees or beside planted borders. A system that is easy to lift, rinse and check is usually the better choice for domestic use.

Common mistakes to avoid

The most frequent issue is relying on the channel to solve a wider drainage problem. If the patio has poor falls, weak sub-base preparation or no proper discharge point, the channel is being asked to do too much. Other common mistakes include setting the grate proud of the paving, choosing a drain that is too light for the use area, or overlooking maintenance access altogether.

It is also easy to underestimate how visible the drainage line will be once the patio is finished. On higher-end projects, especially with large-format paving, proportion and positioning matter. A channel that is slightly off-centre or awkwardly cut into the slab layout can disrupt the whole look.

When it pays to invest a bit more

On a basic patio, a budget channel system may be enough if it is fitted properly and connected to a suitable outlet. But on larger terraces, premium porcelain projects or areas directly outside the home, spending more on a better-finished and more durable system is often worthwhile.

The reason is not only appearance. Better-quality components generally offer stronger grates, cleaner connections and more reliable long-term performance. That can reduce the chance of movement, corrosion or replacement later on. For installers, it also tends to make the fitting process more predictable, which saves time on site.

If you are already investing in quality paving and installation materials, the drainage detail should not be the weak link. Save & Pave customers often want the practical answer without compromising the finish, and that is exactly how drainage should be approached.

Getting the patio right from the start

Patio drainage channel systems work best when they are considered alongside the paving, edging and full construction build-up. They are not the most visible part of the project, but they have a direct effect on how the patio performs in wet weather and how well it holds its finish over time.

If you are planning a new patio or upgrading an existing one, take the drainage design as seriously as the slab choice. A smart surface is only part of the job. When water is controlled properly, the whole space stays cleaner, safer and easier to enjoy through every season.

A well-finished patio should still look good after heavy rain, not just in the brochure shot on a dry day.
